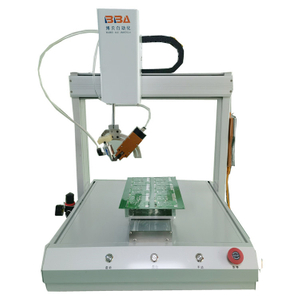

| Model | BBA-5331CU |
| Voltage | AC110/220V 50/60HZ |
| Working platform | 500*300**300*100 mm (can be customized) R axis: 360° |
| Maximum load weight | 8KG (For work platform) |
| Repeated Precision | +/-0.03MM |
| Operation system | Teaching pendant |
| Program Capacity | 1000 files, 8000points per set |
| Data Storage Type | USB Disk |
| Movement pattern | Point to point in XYZ axis, Continuous line, arc |
| Cutting efficiency | 6000-7500 points per hour |
| Cutting capacity | Copper wire ≤ Φ3.0mm(change different cutters according to wire diameters) |
| Driving Mode | Precision Stepping Motor + Synchronous belt |
| Weight | 90(KG) |
1. Easy operation with human-machine interface control panel.
2. Universal product fixture to meet different PCB size.
3. Large programme capacity, can store more than 1,000 processing files, and each file supports 8,000 instructions.
4. High cutting efficiency: 6000-7500points /hour.
5. The cutting speed & single point amount of PCBA leads can be set separately, leads cutting accuracy ±0.2mm.
6. Equipped with High-precision stepper motor control.
7. Automatic soldering foot cutting machine can be used to cut any shape of point, line, arc, etc.
8. The clipping head can be adjusted at any angle in any direction, with wide applicability to meet different needs.
9. Machines of different specifications can be customized based on customer's requirements.
10. Vaccum mode to suck the waste.

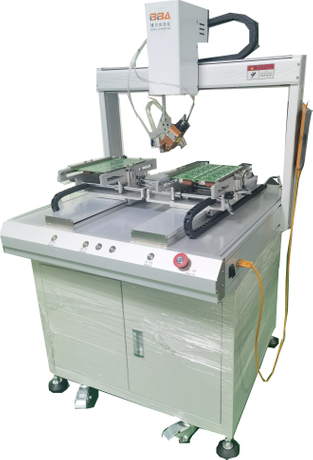

This PCB lead cutting machine for plug-in products is available for a vast range of products, mainly suitable for selective clipping of circuit boards in the PCB industry: Digital electronics, Led light panel, PCB industry, Communications, Home appliance, Automobile industry, etc.
